| Brand Name : | Singuway |
| Model Number : | Singu9600 Pro |
| Certification : | ISO9001, ISO13485, CE |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 5-10 working days |

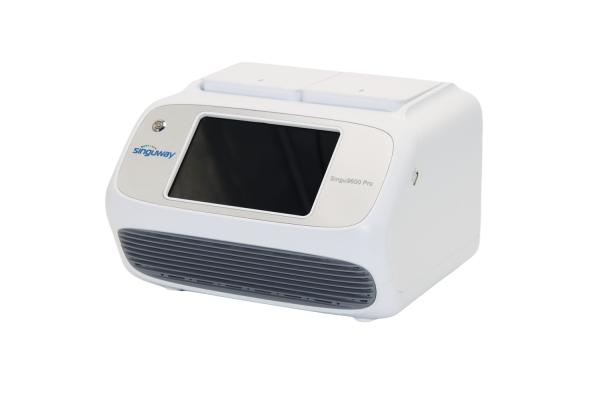

32 Wells Real Time Fluorescent Quantitative Thermal Cycler PCR Machine
This machine is a poriable fluorescence quantitative PCR instument developedby Medsinglong This product adopts dual-channel and double 8- well blocks, which can run two diferent fles simultaneously.
Features:
1) Up to 4 fluorescence detection channels allowing multiplex PCR.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for
Quantitative Analysis, Melting Curve Analysis, Genotyping, etc.
4) 7-inch high-definition TFT color touch screen, and embedded
win10 operating system.
5) 20G flash memory can save 40,000 experimental data.
6) Printer as an optional which can print the records directly, no
need to connect the computer.
7) Adopting side scan technology, the detection distance is close,
and the fluorescence acquisition signal is stable;
8) Black reaction block to avoid background noise.
Specifications:
| Sample capacity | 32x0.2ml (4x8well, dual block) Clear 0.2ml PCR tube/8-tube strips | Factory Calibrated Dyes | F1:FAM/SYBR Green l F2:HEX/VIC/JOE/TET F3:ROX F4:CY5 |
| Reaction volume | 10-100ul | Extraction wavelength | 460-628nm |
| Thermal cycle technology | Pelter, liquid circulation refrigeration | Emission wavelength | F1:520-540nm; F2:540-580nm; F3:571-612nm F4:628-692nm |
| Max. Ramp Rate | 8.5°C/s | Sensitivity | Single copy gene |
| Heating temperature range | 0-100°C | Fluorescent channels | 4 channel |
| Temperature accuracy | ±0.2°C | CV | ≤3% |
| Temperature uniformity | ±0.2°C | Dynamic range | 1-10 copies |
| Display | 7 inch color Touch screen | Feature function | Absolute/Relative Quantification,Melting curve,Genotyping |
| Weight | 6.5kg | Size | 30*27*20 |
Q:How many detection channels does the instrument have?
A: There are 4 fluorescence detection channels allowing multiplex PCR.
Q:How many samples does the instrument do at one time?
A:The product can detect up to 32 samples at a time.
Q:How long does the experiment result take?
A:It takes less than 30 minutes.
Q:How long does it take to ship after placing an order?
A:Generally it takes 3-7 days which depends on the quantity and our
stock.
Q:How to get after-sale technical support?
A:Users can contact us via email or video for problems in the use
of the instrument, and we will give feedback or solutions as soon
as possible.
|
|
